Other Gas compression System Applications

GARO customized gas compressors package solutions are designed to safely handle toxic, explosive and non condensable gases while performing reliably with low maintenance operations

GARO customized gas compressors package solutions are designed to safely handle toxic, explosive and non condensable gases while performing reliably with low maintenance operations

• Rugged Design Construction - for high efficiency in operations with gas of low molecular weight and structure
• Tolerant of occasional carryover of sour gas
• Low Maintenance Requirements
• Cool Running Liquid Ring Technology
• Simplified Process - Using water as the seal liquid
• Global Technical Support & Service

• CO2
• NOX
• Flash/Vapor Gas
• Butadiene
• SO2
• Other condensable gases

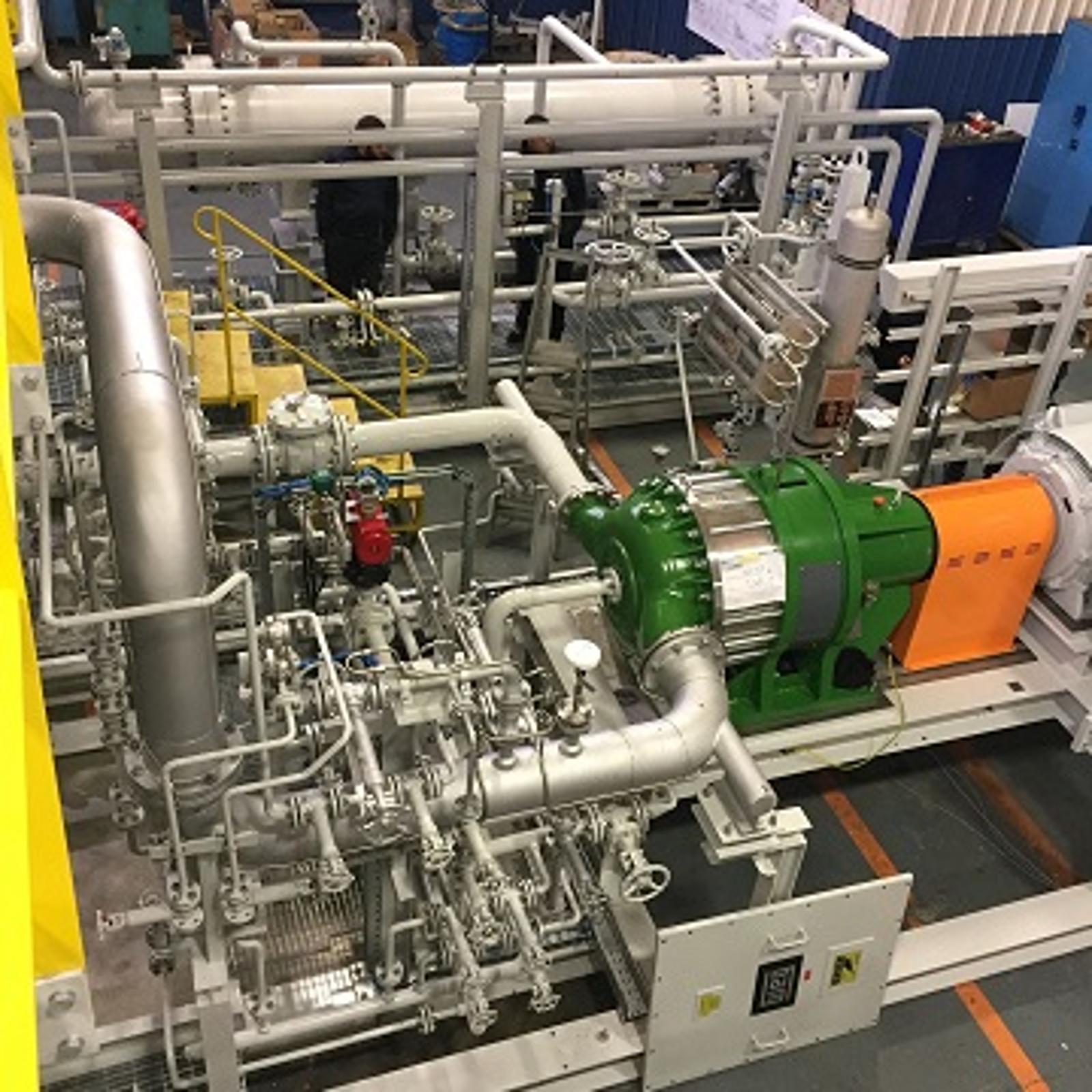

GARO Single Stage Liquid Ring Compressor Package

• Pressure range: up to 5 Bar Abs
• Flow rate range: up to 5000 Am3/h per single compressor.
• Materials: Stainless Steel, Duplex, Alloy825 steel; other materials upon request.
• Sealing type: dual mechanical seals in back to back or tandem arrangement

• Pressure range: up to 12 Bar Abs
• Flow rate range: up to 4000 Am3/h per single compressor
• Direct or gearbox driven with a modular design
• Materials: Carbon Steel or Stainless Steel (304 or 316L); other materials upon request
• Sealing type: single or double mechanical seals in back to back or tandem arrangement
